VALVES
The Alco Valves range of instrument valves, manifolds and accessories has been specifically developed to meet the demanding needs of our clients. Delivering long term in-service reliability and minimum life-time costs, Alco instrument valves and manifolds are supplied as standard with the following certification:
- Full material traceability
- NACE compliance
- 100% Hydraulic pressure testing, including functional testing
- Test Certification
- Certificate of Conformity
- PED CE marking as applicable
-
EDBB-B Series Double Block & Bleed Valve
The ‘Ball Needle Ball’ configuration Double Block & Bleed Ball Valve Manifold is fully approved to be supplied to many of the world’s petrochemical companies. The design provides an effective method for mounting gauges with facility to test and calibrate gauges and pressure switches.
-
EDBB-N Series Double Block & Bleed Valve
The ‘Needle Needle Needle’ configuration Double Block & Bleed Needle Valve Manifold is fully approved to be supplied to many of the world’s petrochemical companies. The design provides an effective method for mounting gauges with facility to test and calibrate gauges and pressure switches.
-
EUC Series Check Valve
The Alco Valves ‘EUC’ Series 2 piece Non Return Valve is designed for high flow with low pressure drop in a pressurised medium. Having a soft primary seat means it is suitable for gases or liquids.
-
FVX1 Female/Female, FVX2 Male/Female
The precision made FVX1 & FVX2 single isolation hand valve offer a high-pressure design with “One Piece” Integral Stuffing Box & Body the valve provides strength and material hardness for extreme operating conditions.
-
FVX1A Female/Female, FVX2A Male/Female
The precision made FVX1A & FVX2A single isolation angle pattern hand valve offers a high-pressure design with “One Piece” Integral Stuffing Box & Body. The valve provides strength and material hardness for extreme operating conditions.
-
GV / UGV Series Needle Valve
The ‘GV’ Series multiport gauge valve provides an efficient method of mounting pressure gauges, manometers, pressure transducers or transmitters and includes vent and blanked port facilities or additional drains in a circuit or system.
-
HMX1 – 2 Valve Manifold
For static pressure measurement with D.P. style, absolute and gauge pressure transmitters. A compact 2 valve manifold designed to accommodate larger gauges within the IEX1 enclosure combining isolating, calibrating and venting facilities in a single unit providing a threaded instrument connection for remote mounting instruments.
-
HMX2 – 2 Valve Manifold
For static pressure measurement with D.P. style, absolute and gauge pressure transmitters. A compact 2 valve manifold combining isolating, calibrating and venting facilities in a single unit providing a Direct Flanged instrument connection for remote mounting instruments. also available with threaded instrument connections for remote mounting instruments.
-

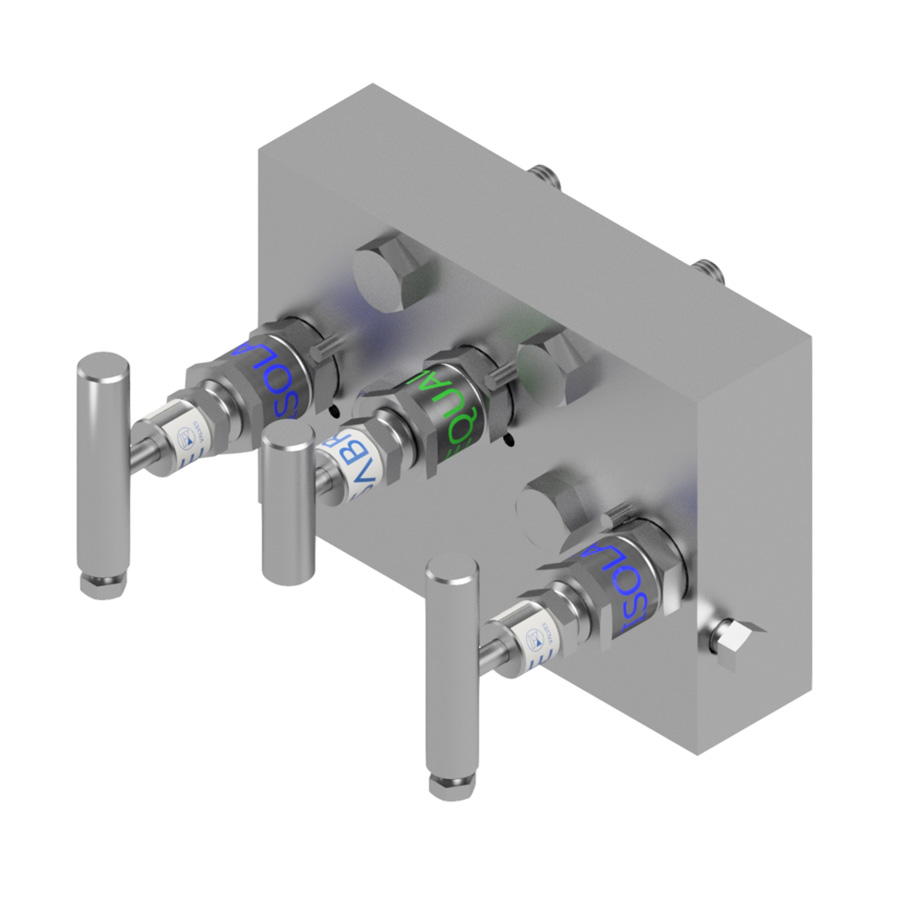

HMX3 – 3 Valve Manifold
For general liquid and gas measurement applications using D.P. transmitters. A 3-valve manifold combining 2 isolating and 1 equalising valves in a single compact unit providing easy instrument isolation and zeroing. Provided with instrument flange mounting detail on 54mm centres (other centre distances are available on request). Also available with integral steam channel, for greater […]
QUALITY ASSURANCE
Alco Approvals
Together with our many quality accreditations, these approvals give you the peace of mind of buying from a recognised, established global
supplier.
Our aim is to provide technically advanced, precision made, high integrity valve products delivering optimum liability and service life. The fact that our valves and equipment are specified by many of the world’s leading oil and gas energy and power companies speaks volumes for their effectiveness
The features of our high-quality valves
